Images in Paediatrics
Full text access
Diagnosis of infective endocarditis using focused cardiac ultrasound
Diagnóstico de endocarditis infecciosa mediante ecografía cardíaca dirigida
Verónica Jiménez Escobara,
Corresponding author

Corresponding author.
, Cristina Walter Carinb, Irene Antoñanzas Torresc, Daniel Palanca Ariasd
a Servicio de Pediatría, Hospital San Pedro, Logroño, La Rioja, Spain
b Unidad de Cardiología Pediátrica, Hospital Sant Joan de Déu, Esplugues de Llobregat, Barcelona, Spain
c Servicio de Pediatría, Hospital Infantil Universitario Miguel Servet, Zaragoza, Spain
d Unidad de Cardiología Pediátrica, Unidad de Cuidados Intensivos Pediátricos, Servicio de Pediatría, Hospital Infantil Universitario Miguel Servet, Zaragoza, Spain
This item has received
Article information
Full Text
Download PDF
Figures (3)
Show moreShow less
Additional material (1)
Full Text

Focused cardiac ultrasound (FoCUS) is the term used to refer to point-of-care ultrasound (PoCUS) applied to the evaluation of the haemodynamically unstable patient. Its growing application in paediatric care can allow early diagnosis.1

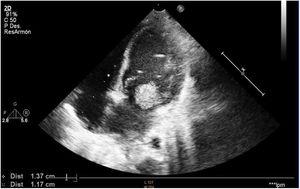

We present the case of an infant aged 13 months with fever without a source, a previous history of hand, foot and mouth disease (HFMD) and bacteraemia (Kingella kingae). On day 4, after targeted antibiotherapy, the fever, tachycardia, tachypnoea and systolic murmur persisted, prompting performance of FoCUS in the paediatric ward, the chief findings of which were a vegetation (Appendix B, video 1) and mitral valve insufficiency, confirmed by the on-call cardiologist (Figs. 1–3). The patient was transferred to a hospital that had a paediatric intensive care unit (PICU) where he remained respiratory stable (nasal prongs) and, due to the clinical and sonographic signs of heart failure, received haemodynamic support (milrinone and diuretics). The blood test results were unremarkable, with the most salient being the level of pro B-type natriuretic peptide (proBNP, 5039 pg/mL). The patient required mitral valve repair and placement of a mechanical prosthetic valve in a second surgical intervention on account of progressing haemodynamic instability.

Figure 1
Figure 2
Figure 3

Endocarditis caused by HACEK group bacteria is infrequent and associated with a high incidence of complications, and early diagnosis and treatment are crucial. In children, K kingae is part of the normal oropharyngeal microbiota and it rarely causes invasive infection.2 The previous episode of HFMD may have facilitated its passage into the bloodstream.

Although the most recent PoCUS guidelines3 have found that the evidence on its used for diagnosis of endocarditis is contradictory and of poor quality, it can detect intracardiac masses, allowing referral of the patient to a paediatric or intensive care cardiologist with advanced skills in the technique.

The use of point-of-care FoCUS allowed early optimization of the diagnostic and therapeutic approach.

Appendix A
Supplementary data

The following is Supplementary data to this article:


J. Mayordomo-Colunga, R. González-Cortés, M.C. Bravo, R. Martínez-Mas, J.L. Vázquez-Martínez, L. Renter-Valdovinos, et al.
Ecografía a pie de cama: ¿es el momento de incluirla en la formación del pediatra? [Point-of-care ultrasound: Is it time to include it in the paediatric specialist training program?].
An Pediatr (Engl Ed)., 91 (2019), pp. 206.e1-206.e13
N. El Houmami, P. Minodier, G. Dubourg, A. Martin-Laval, E. Lafont, J.L. Jouve, et al.
An outbreak of Kingella kingae infections associated with hand, foot and mouth disease/herpangina virus outbreak in Marseille, France, 2013.
Pediatr Infect Dis J., 34 (2015), pp. 246-250
Y. Singh, C. Tissot, M.V. Fraga, N. Yousef, R.G. Cortes, J. Lopez, et al.
International evidence-based guidelines on Point of Care Ultrasound (POCUS) for critically ill neonates and children issued by the POCUS Working Group of the European Society of Paediatric and Neonatal Intensive Care (ESPNIC).
